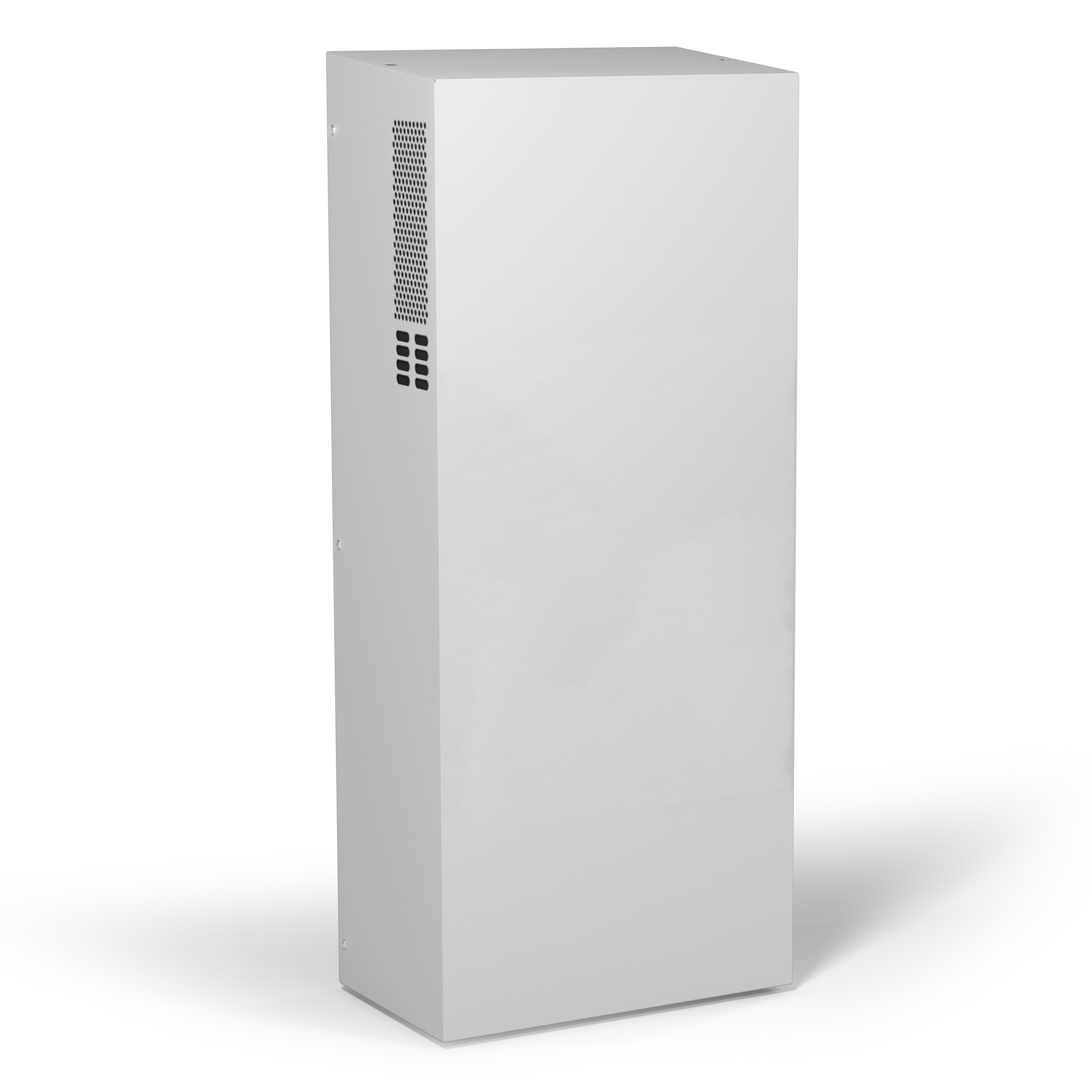

The CCU series wall-mounted cooling units represent an ideal solution for cooling electrical panels in high external temperatures, isolating them from the surrounding environment. The range of cooling units meets different indoor and outdoor application needs, ensuring high technical and safety standards. In all models, the polyurethane gasket is laid by machine, significantly reducing installation times.
| Document type | Format | Size | Action |
|---|---|---|---|
| General Safety Instructions | 0.32 MB | Download | |
| Mounting cut-out mm (in) | 0.01 MB | Download | |
| Mounting Instructions | 0.62 MB | Download | |
| Wiring Diagram | 0.07 MB | Download | |
| Declaration Of Conformity EU | 0.14 MB | Download | |
| Declaration Of Conformity UKCA | 0.13 MB | Download |
| Approvals | CE; UKCA |
|---|
| Frequency | 50/60 Hz |
|---|---|
| Fuse T | 6 A |
| Max Current | 17 A |
| Rated Current | 2.9/3.2 A |
| Rated Power L35L35 | 395/455 W |
| Rated Power L35L50 | 445/535 W |
| Rated Voltage | 230 V a.c. |
| Operating Temperature | -20÷55 °C |
|---|---|
| Protection Degree Internal Circuit | IP55 |
| Casing Material | Painted Steel |
|---|---|
| Electrical Connection | Connector |
| Maximum Allowable Pressure | HP 2.4/LP 0.6 MPa |
| RAL Number | 7035 |
| Refrigerant Charge | 250 g |
| Refrigerant Number | R134a |
| Cooling Capacity L35L35 | 855/935 W |
|---|---|
| Cooling Capacity L35L50 | 685/715 W |
