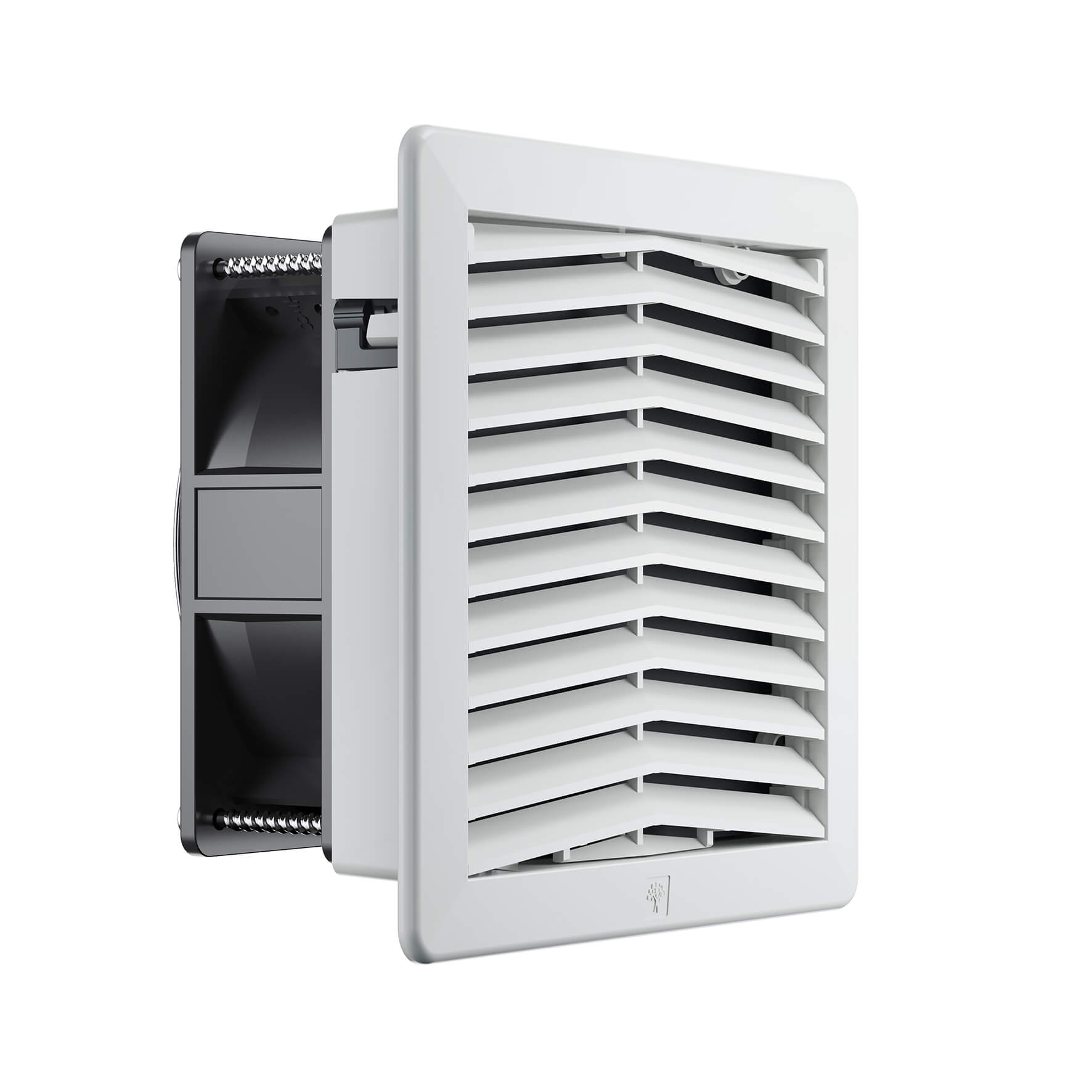

GF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Characterized by a mounting system with jacks for thick wall application (up to 8mm extensible up to 16mm by cutting the jacks) in both plate and plastic enclosures, and a hinged opening for a filter media replacement in seconds.
| Approvals | CE; UKCA |
|---|
| Motor Protection | Electronically Protected |
|---|---|
| Operating Voltage | 10-26.7 V d.c. |
| Rated Current | 0.3 A |
| Rated Power | 7 W |
| Rated Voltage | 24 V d.c. |
| IP Protection Degree | IP54 |
|---|---|
| Operating Temperature | -10÷50 °C |
| Storage Temperature | -45÷70 °C |
| Airflow Direction | Direct |
|---|---|
| Cable Length | 300 mm |
| Electrical Connection | Wires |
| Fan Noise | 42.5 dB(A) |
| Filter Class | G3 EN 779 |
| Filter Class | ISO coarse 55% ISO 16890 |
| Filter Material | thermo-linked progressive structure synthetic fibre |
| Life Expectancy | 50000 h at 25 °C |
| RAL Number | 7035 |
| Wires Section | 24 AWG |
| Mounting Wall Thickness | 1-8 mm |
|---|
| Airflow with Exhaust Filter | 33 m³/h |
|---|---|
| Max Airflow | 46 m³/h |
| Max Static Pressure | 54 Pa |
